LogiCue XLR 6

The LogiCue XLR 6 controller has many of the same features as the LogiCue XLR 12. It has 6 channels of control, LED indicators that mimic the color of each channel, a 2-way “acknowledge” feature that allows actors or crew members to respond to the stage manager with the press of a button, and self-test on power up. The controller connects to the cue lights using standard microphone cable. Made in the USA

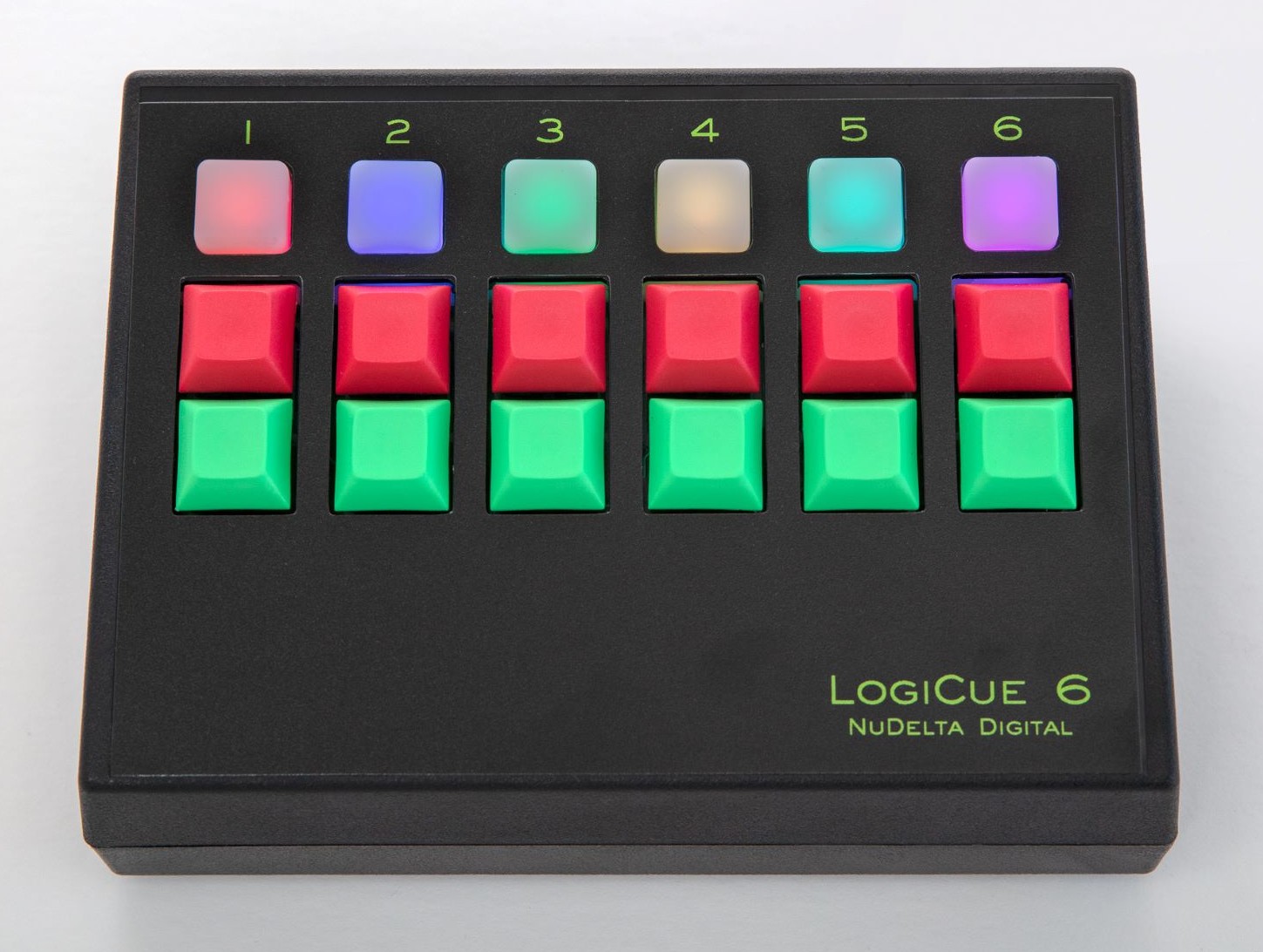

LogiCue XLR 6 Front

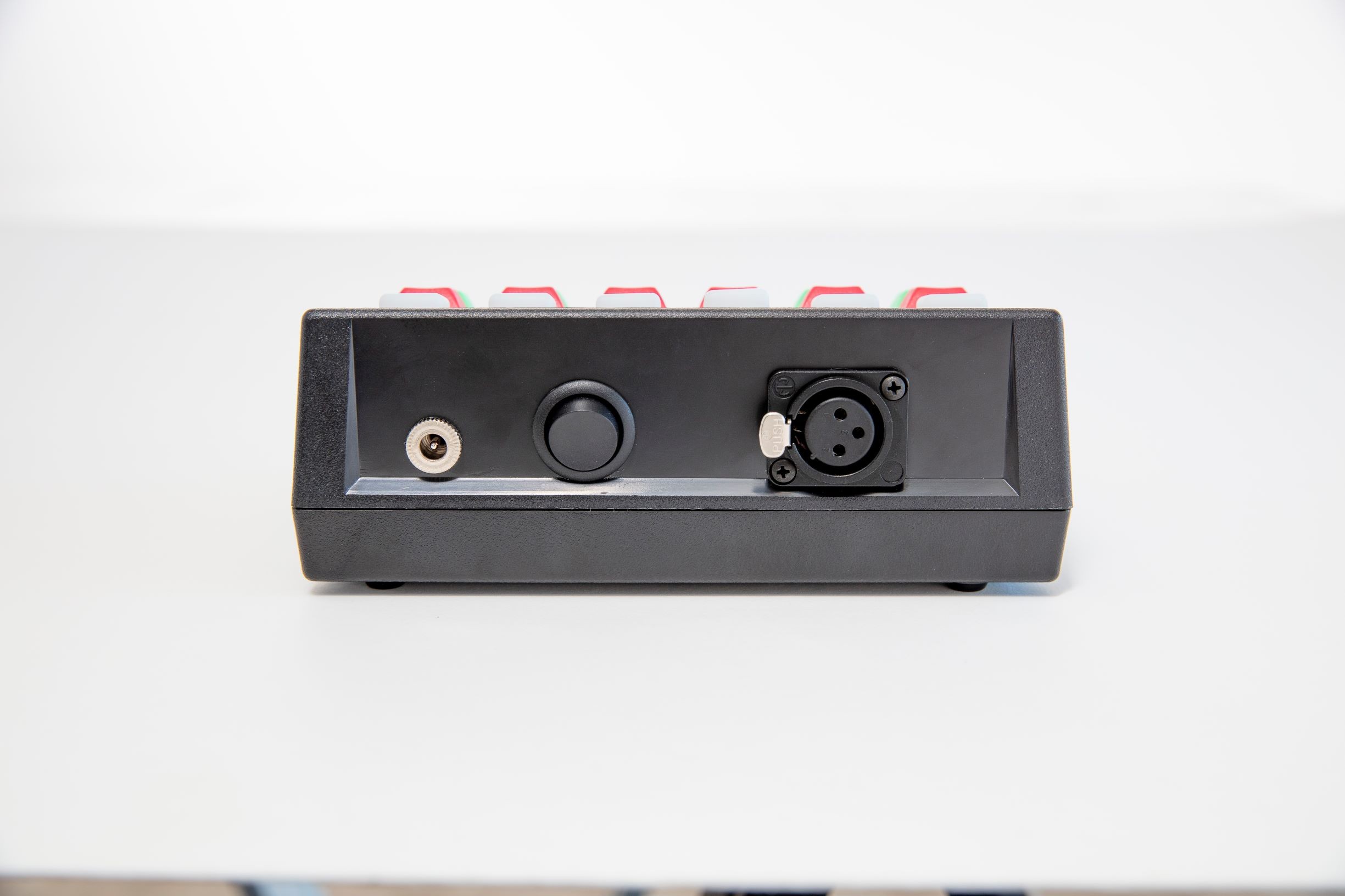

LogiCue XLR 6 Rear

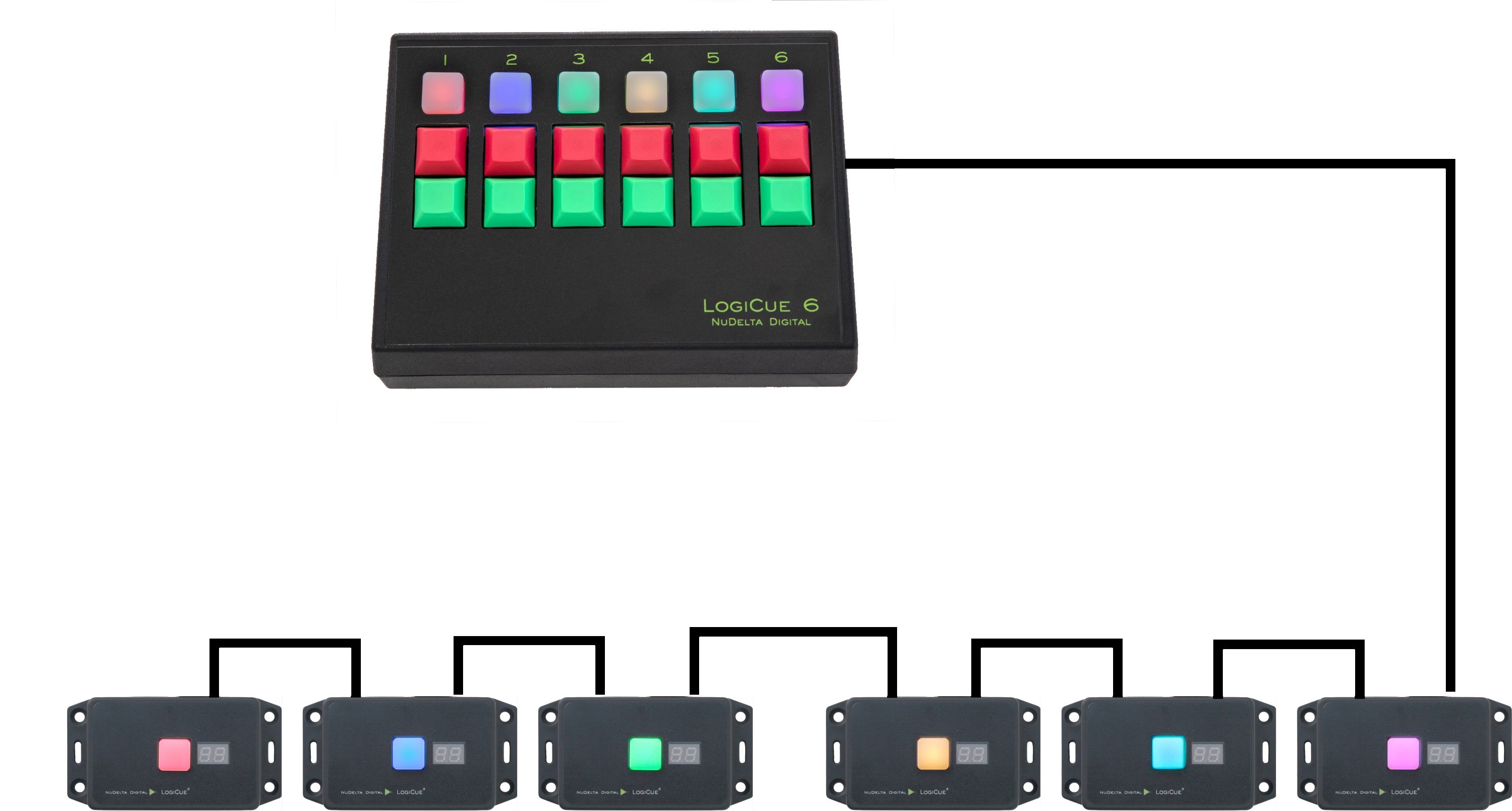

LogiCue XLR 6 Wiring Diagram 1

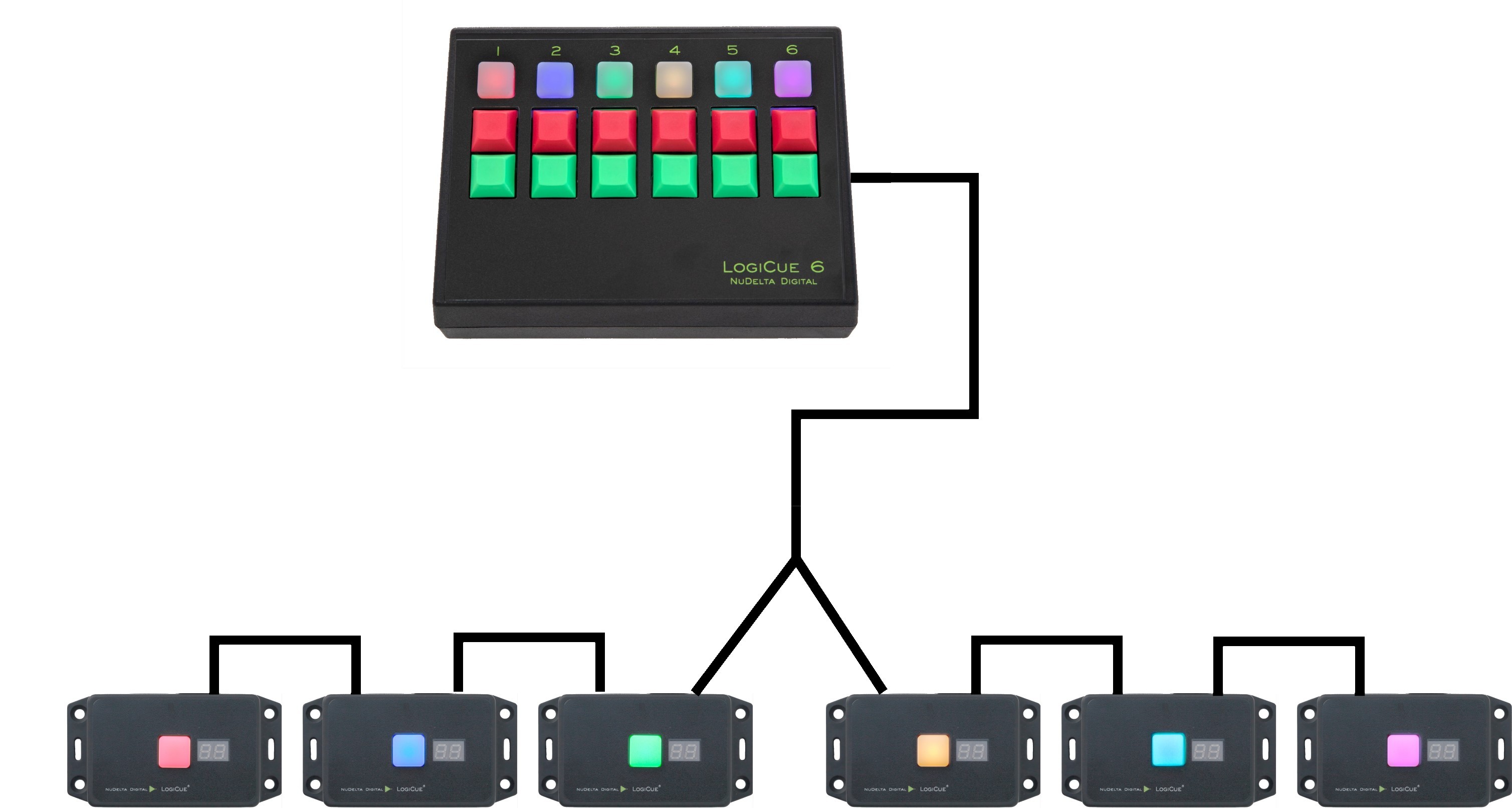

LogiCue XLR 6 Wiring Diagram 2
Contact a dealer

Just the right fit

Sometimes all you need is a few cue lights. Your venue may be a small studio theater or black box. Having a compact cue light system would enable the stage manager to be able to signal actors or crew members. The compact LCX6 Controller, part of the LogiCue Digital Cue Light System, is the perfect fit for smaller venues. It features the same tactile "clicky" buttons and colorful indicator lights that the larger LCX12 controller has but with six channels of control instead of twelve. After years of touring to different venues around the world, we kept seeing cue light systems that were either well-engineered into the building or poorly constructed afterthoughts that were not practical, portable, or safe. We wanted a cue light system where cue lights could be put anywhere around the theatre where it would help cue actors or crew members. Cue lights can be placed backstage, behind flats, behind scenery, on escape stairs, in orchestra pits, below trap doors, at the audio mix position, or wherever an actor or crew member may be during a show. We set out to buld a system that could easily be incorporated into theatres either through existing audio infrastructure, new audio cable, or temporary cables. The LogiCue Digital Cue Light System is easy to install because it uses standard microphone cable that many venues already have. The controller can be set up at the stage manager's station temporarily at the tech table. When it is time to move to the booth or backstage, only a single cable needs to be re-routed.
Product Information
Item name: LogiCue XLR 6 Part number: LCX6
  • FCC Part 15 Certified
  • CE Certified
  • UL and ETL certified power supply
  • 2 year warranty
Dimensions
Width 6.6 inches (168 mm)Height 2.75 inches (70 mm)Depth 5 inches (127 mm)
Shipping weight 17 ounces (.48 kg)Shipping Dimensions:Width 10 inches (254 mm)Height 4 inches (102 mm)Depth 8 inches (204 mm)All LogiCue Controllers ship with a 18 volt adaptor with American plugs that accepts voltages from 100 to 240 volts A/C.
