LogiCue 12

The LogiCue 12 controller has plenty of channels for your theatre to grow into. It has 12 channels of control, LED indicators that mimic the color of each channel, a 2-way “acknowledge” feature that allows actors or crew members to respond to the stage manager with the press of a button, and self-test on power up. The LC12 has individual "Standby" and "Go" buttons for each channel and Master "Go" and "Clear" buttons so large cue can have multiple cue lights go at once. The LC12 has a DMX output that you can use to control things besides cue lights, such as a DMX dowser for a projector, or DMX lights on your fly rail. The controller connects to the cue lights using standard microphone cable. Made in the USA
LogiCue 12 Front

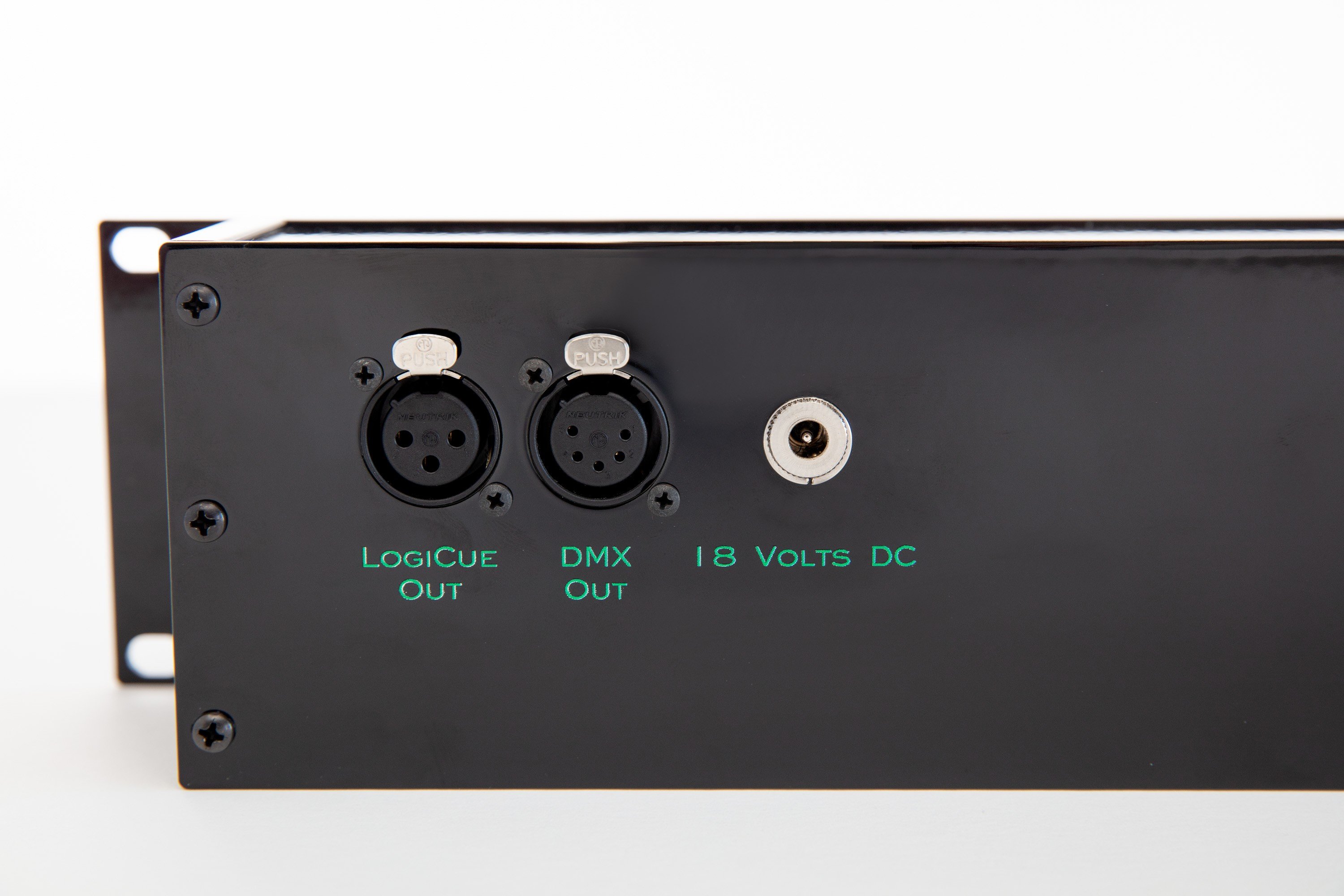

LogiCue 12 Rear

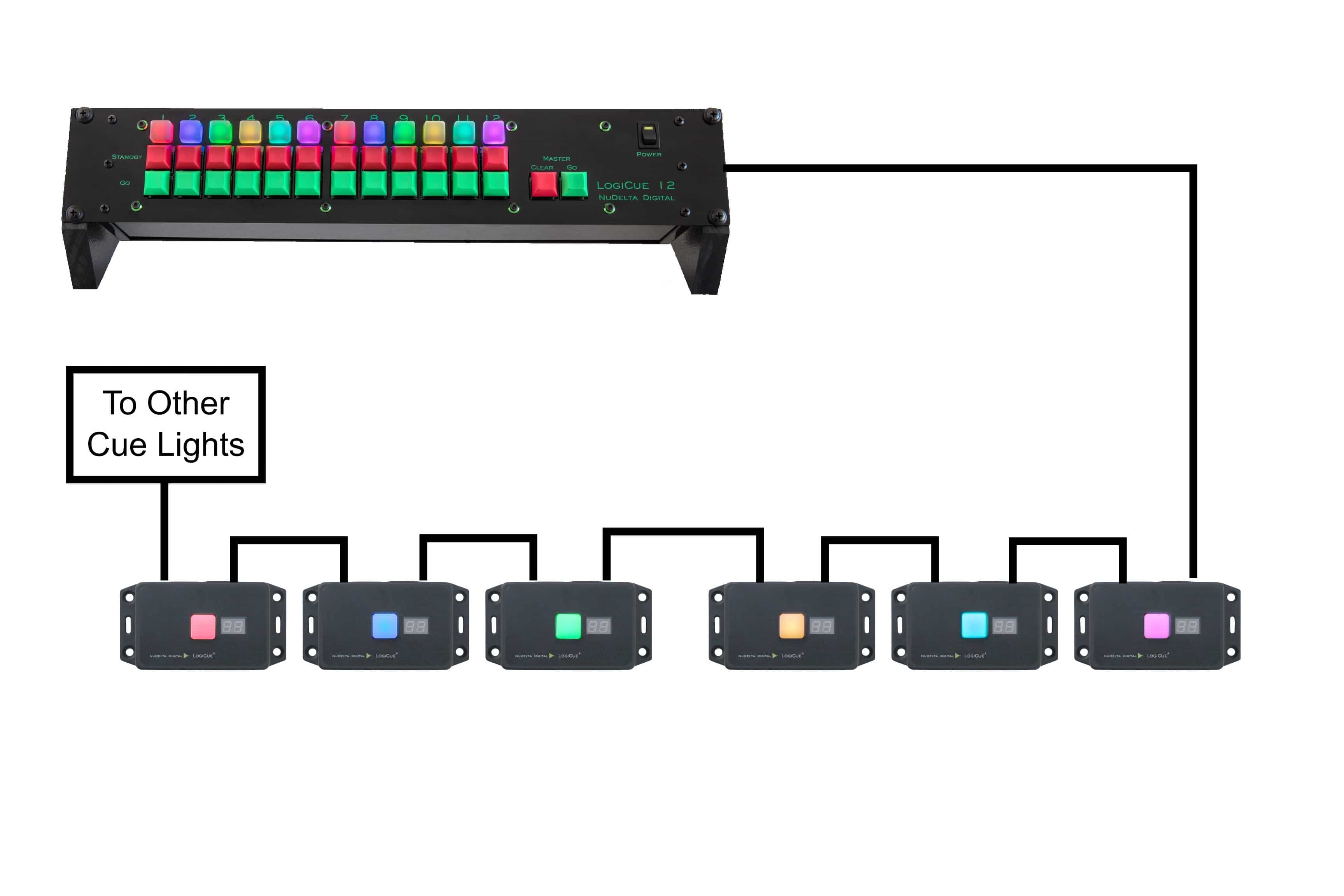

LogiCue 6 Wiring Diagram 1
LogiCue 6 Wiring Diagram 2

Video can’t be displayed

This video is not available.

Click here to download the manual
Contact a dealer

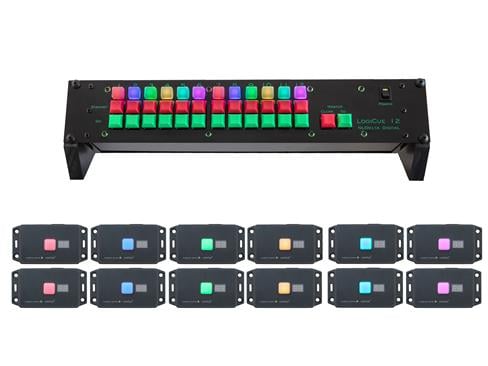

Available individually or as a bundle with 6 or 12 cue lights.

Just the right fit

After years of touring to different venues around the world, we kept seeing cue light systems that were either well-engineered into the building or poorly constructed afterthoughts that were not practical, portable, or safe. We wanted a cue light system where cue lights could be put anywhere around the theatre where it would help cue actors or crew members. Cue lights can be placed backstage, behind flats, behind scenery, on escape stairs, in orchestra pits, below trap doors, at the audio mix position, or wherever an actor or crew member may be during a show. We set out to buld a system that could easily be incorporated into theatres either through existing audio infrastructure, new audio cable, or temporary cables. The LogiCue Digital Cue Light System is easy to install because it uses standard microphone cable that many venues already have. The controller can be set up at the stage manager's station temporarily at the tech table. When it is time to move to the booth or backstage, only a single cable needs to be re-routed.
Product Information
The LogiCue System has been used on hundreds of shows throughout the world.
  • FCC Part 15 Certified
  • CE Certified
  • UL and ETL certified power supply
  • 2 year warranty
Dimensions
19 inches wide (Standard rack width) 3.5 inches tall (2 standard rack spaces) 3 inches deep Shipping size: 21 X 10X 10 inches Shipping Weight: 8 pounds

Made in the USA
